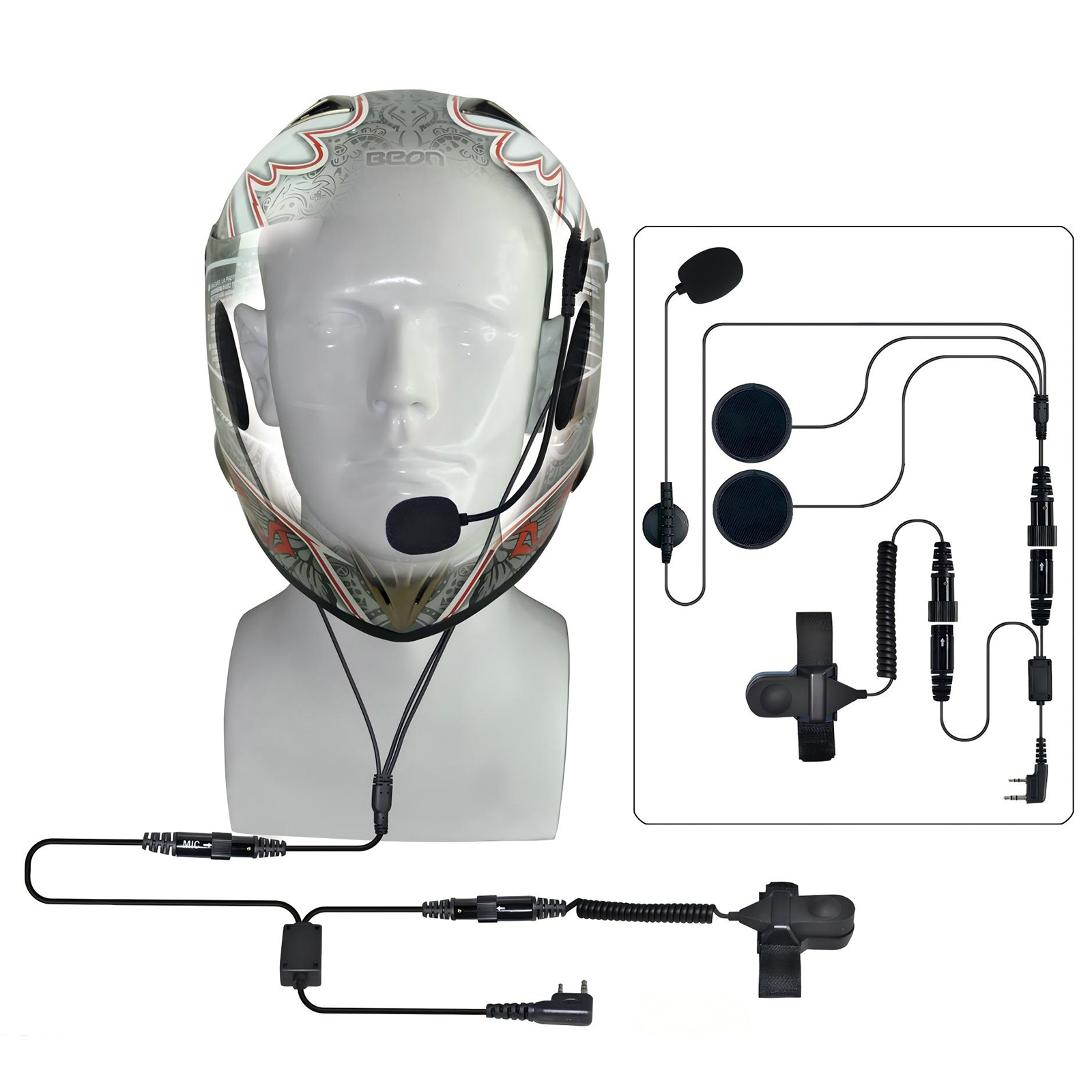

KX100-S Air Tube Earpiece Headset PTT with VOX function Suitable for both helmets in open or close style

Technical Specification:

■ Speaker

Dimension: Ø36mm

Sensitivity:90dB ±3dB(Single part)@1Kz

Impedance: 32 Ω ±15%

Frequency Rage: 420Hz–20KHz

Related Power:100mW

Maximum Power: 200mW

■ Mic( Single Microphone)

Dimension: Ø9.7×6.7mm

Sensitivity:–36dB ±2dB

Impedance: 2.2KΩ

Frequency: 20–16000Hz

Operation Voltage: 1V–10V

■ Cable

Diameter: Dual Ø4.0mm

Durable Temperature: –20℃—90℃

■ Connector

Life time: 12000times (put in and take out)

According to radio models, different connector available.
